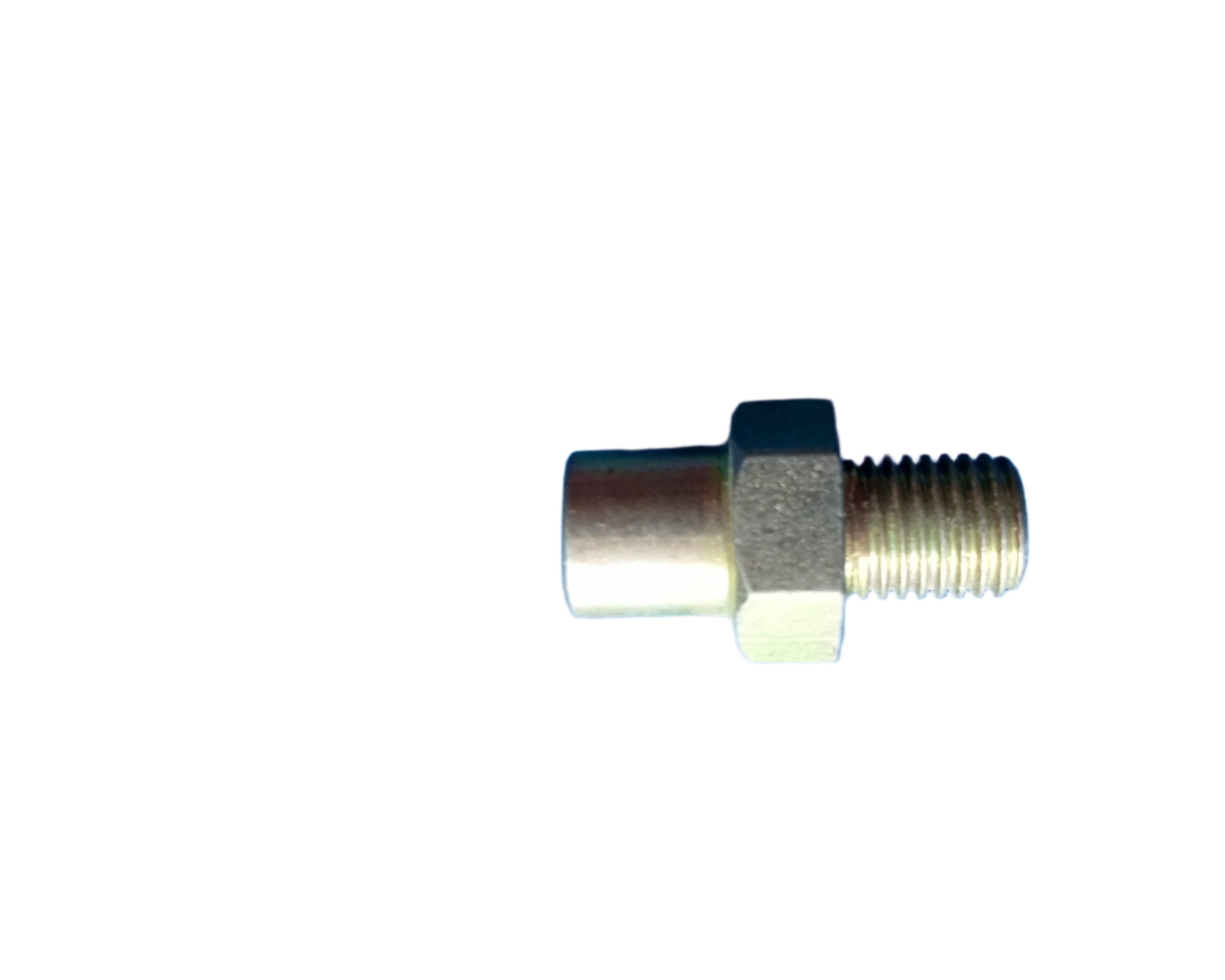

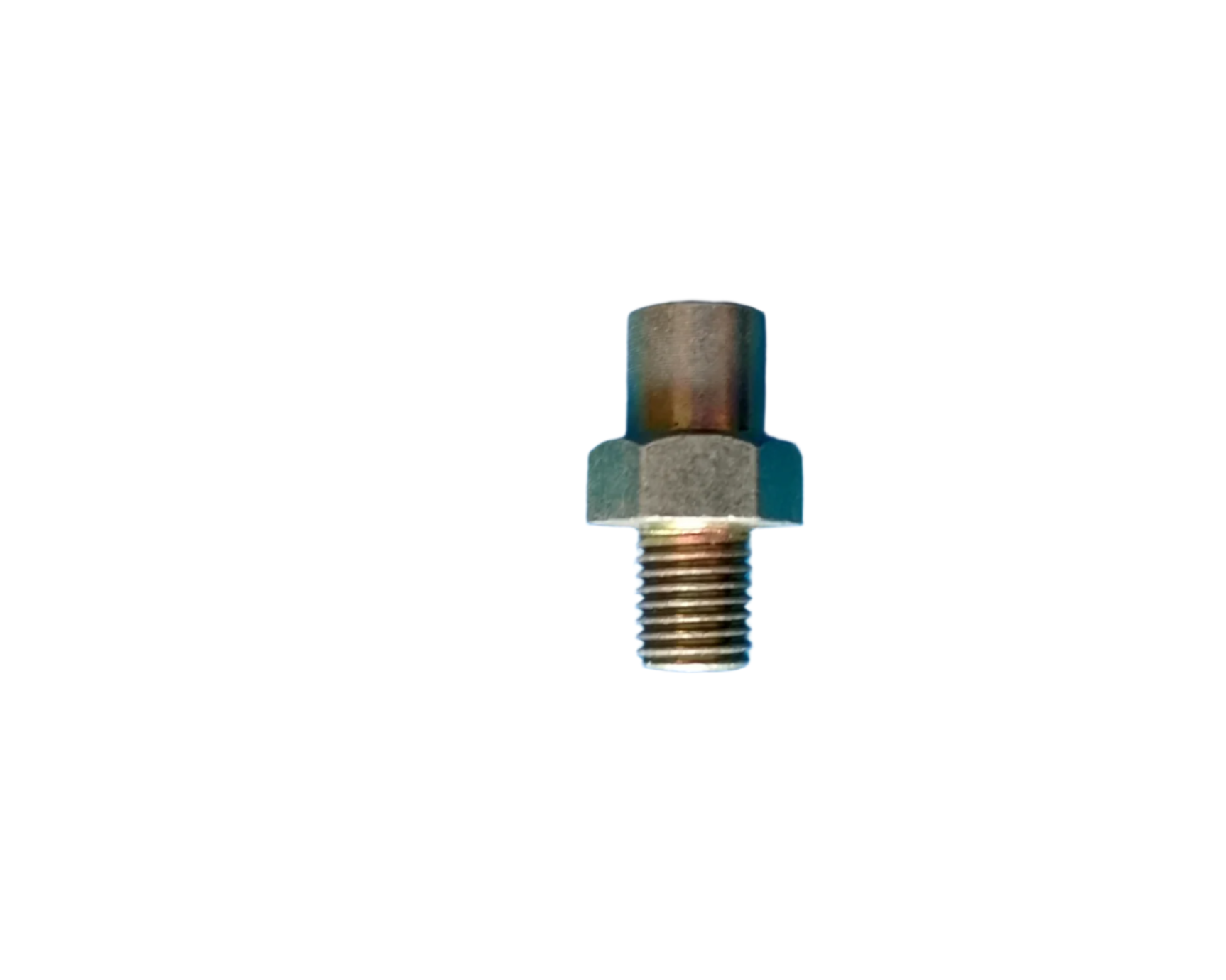

Metric male 24° cone hydraulic fitting with M12 × 1.5 straight thread for DN03 (3/16") hose. Designed for secure, leak-free connections in high-pressure hydraulic systems.

The 10211-12-03Y is a metric male 24° cone hydraulic hose fitting, manufactured according to DIN metric standards.
It features a straight (parallel) M12 × 1.5 thread and seals via a 24° cone metal-to-metal seat, ensuring reliable performance in hydraulic applications.

This fitting is commonly used in hydraulic hose assemblies, industrial machinery, construction equipment, and automotive hydraulic systems.
Sealing occurs at the cone seat — thread seal tape or paste is NOT required.

10211-12-03Y သည် Metric Male 24° Cone Hydraulic Hose Fitting ဖြစ်ပြီး DIN Metric စံနှုန်းအတိုင်း ထုတ်လုပ်ထားပါသည်။
M12 × 1.5 Straight Thread ဖြင့် DN03 (3/16") Hydraulic Hose ကို ချိတ်ဆက်အသုံးပြုနိုင်ပါသည်။

Seal လုပ်ရာတွင် 24° Cone သံချင်းထိ Seal ကို အသုံးပြုသဖြင့်
Thread တွင် Tape သို့မဟုတ် Paste မထည့်ရပါ ❌
Hydraulic ဖိအားမြင့် စနစ်များတွင် ယုံကြည်စိတ်ချစွာ အသုံးပြုနိုင်ပါသည်။

Key Features

• Metric male 24° cone sealing

• M12 × 1.5 straight thread

• Designed for DN03 (3/16") hose

• High-strength carbon steel

• Zinc-plated corrosion protection

• Leak-free metal-to-metal seal

• Suitable for high-pressure hydraulic systems

Technical Specifications

⚠️ Before Buying or Using – IMPORTANT

Before purchasing or installing this fitting, customers must physically check and measure the actual product to ensure correct compatibility.

Hydraulic fittings must NOT be selected by appearance alone.
Even similar-looking fittings may differ in:

• Thread diameter

• Thread pitch

• Thread standard

• Seal type

Incorrect selection may cause leakage, thread damage, fitting failure, or safety risks.

ဝယ်ယူမီ သို့မဟုတ် အသုံးမပြုမီ
ပစ္စည်းကို ကိုယ်တိုင် တိုင်းတာစစ်ဆေးရန် မဖြစ်မနေ လိုအပ်ပါသည်။

မြင်ရတာ တူသော်လည်း
Thread အချင်း၊ Pitch၊ Thread စံနှုန်း၊ Seal နည်းလမ်း မတူနိုင်ပါ။

မမှန်ပါက ဆီယိုခြင်း၊ အရစ်ပျက်ခြင်း၊ Fitting ပျက်စီးခြင်းများ ဖြစ်နိုင်ပါသည်။

Mandatory Checks

• Confirm Male / Female thread

• Measure thread diameter (caliper)

• Measure thread pitch

• Confirm straight or taper thread

• Confirm seal type

• Confirm hose size (DN size)

⚠️ Measurement without assumption is required.

Applications

• Hydraulic hose assemblies

• Industrial machinery

• Construction equipment

• Automotive hydraulic systems

• Workshop hose fabrication

Package Includes

• 1 × 10211-12-03Y Metric Male 24° Cone Hydraulic Fitting

Technical Reference

Thread and pitch identification follows Win Auto Parts – Thread, Pitch & Measurement Guide.
