About this item


ข้อมูลผลิตภัณฑ์

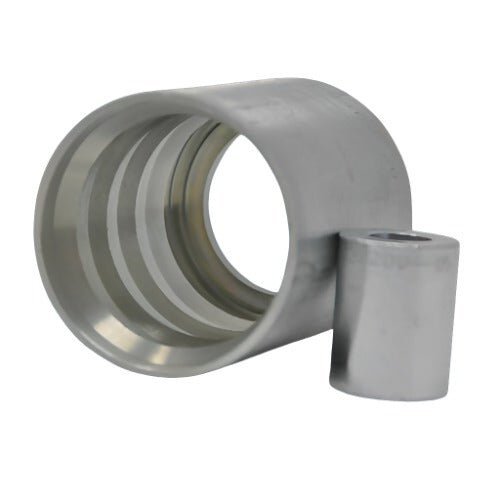

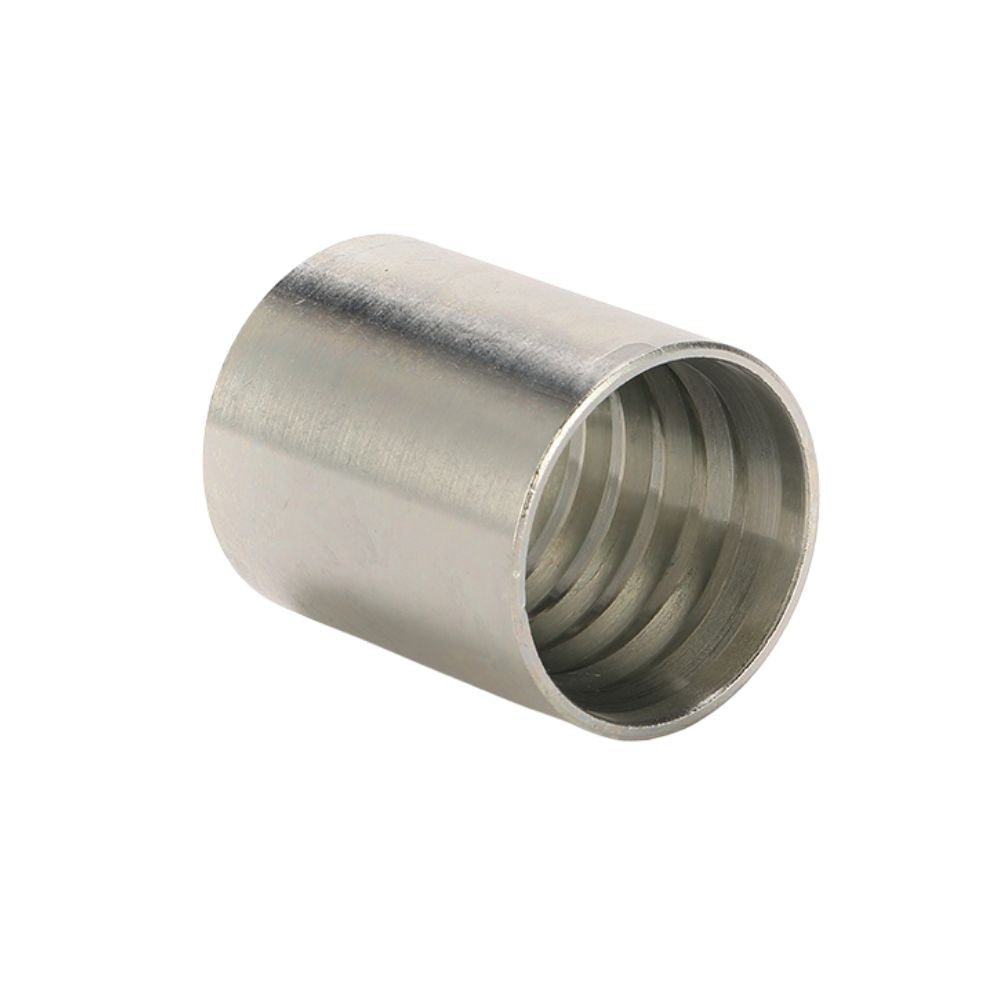

The WPR Hydraulic Hose Ferrule 00210-08 is engineered to provide secure, leak-proof connections in high-pressure hydraulic systems. Designed specifically for SAE 100R2AT and EN 853 2SN hoses, this non-skive ferrule ensures durability and reliability across various industrial applications.

Specifications:

  • Brand: WPR
  • Part Number: 00210-08
  • Hose Compatibility: SAE 100R2AT / EN 853 2SN
  • Hose Inner Diameter: 12 mm (1/2 inch)
  • Material: Carbon Steel
  • Surface Treatment: CR3+ Zinc Plating
  • Dimensions:
    • Outer Diameter (D): 28.3 mm
    • Length (L): 34 mm

Size Chart for WPR 00210 Series Ferrules:

Part Number Hose Nominal Inner Diameter (DN) Dash Size Outer Diameter (D) Length (L)
00210-03 5 mm -03 20.6 mm 27 mm
00210-04 6 mm -04 22.2 mm 30 mm
00210-05 8 mm -05 23.0 mm 31 mm
00210-06 10 mm -06 25.0 mm 32 mm
00210-08 12 mm -08 28.3 mm 34 mm
00210-10 16 mm -10 31.5 mm 37 mm
00210-12 20 mm -12 35.5 mm 43 mm
00210-16 25 mm -16 45.0 mm 50 mm
00210-20 32 mm -20 55.0 mm 59 mm
00210-24 38 mm -24 62.5 mm 74 mm
00210-32 51 mm -32 75.5 mm 78 mm

Installation Guidelines:

  1. Preparation:
    • Confirm hose compatibility with the WPR 00210-08 ferrule.
    • Cut the hose to the desired length, ensuring a clean, square cut.
  2. Ferrule Placement:
    • Slide the ferrule onto the hose end until it reaches the appropriate position.
  3. Fitting Insertion:
    • Insert the suitable hydraulic fitting into the hose end, ensuring a secure fit.
  4. Crimping:
    • Utilize a compatible crimping machine to crimp the ferrule onto the hose and fitting assembly.
    • Adhere to the crimping machine manufacturer's guidelines for pressure settings and procedures.
  5. Inspection:
    • Post-crimping, inspect the assembly to ensure secure attachment and the absence of deformities or leaks.

Note:

  • The WPR 00210 series ferrules are not recommended for use in engineering machinery.
  • Ensure all components are compatible, and that installation is performed by trained personnel to maintain system integrity and safety.

By selecting the WPR Hydraulic Hose Ferrule 00210-08, you are investing in a robust and reliable component that enhances the performance and safety of your hydraulic systems across various industrial operations.
